XFS 300kN (optional touchscreen panel PC)
XFS 300kN
Description
Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.
High resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.
Automatic recognition of load cells and extensometers, with instant calibration check facility.
800% overload capability of load cells without damage.
High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.
Crosshead guidance system providing precise alignment and smooth running.
Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 23-Bit positional control.
High speed data collection systems for up to 4 synchronous channels.
6 I/O channels for additional devices such as extensometers, micrometers, calipers, balances etc.
High stiffness loading frames with solid specialised steel crossheads and rigid extruded support columns with T-slots for accessory mounting.
Overload, overtravel and impact protection.
Telescopic covers giving additional protection for ballscrews against dust and testing debris. Small footprint design, giving economy of bench and floor space.

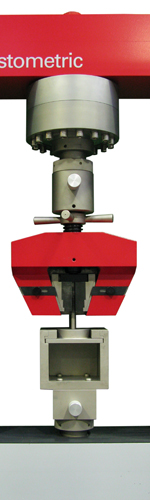

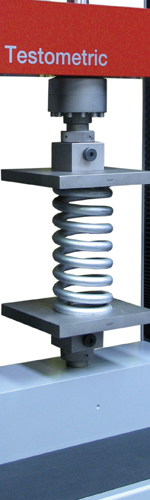

Extensive range of grips and fixtures for tension, compression, flexural, shear, peel and product testing etc.
A wide range of contacting and non-contacting extensometers is available including laser and video models.
Standard Specification
| Machine Capacity | 300kN |
| Speed Range | 0.00001 to 600mm/min in steps of 0.00001mm/min |
| Crosshead Travel (excluding grips) | 1300mm |
| Vertical space | 1600mm |
| Distance between columns mm | 600mm |
Force Measurement
Universally Calibrated, better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4. AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000. Electronic load cell protection.
Speed Control
Extension Measurement
Full frame length to a maximum resolution of 0.000001mm (selectable). Accuracy +/- 0.01mm. Absolute, relative and auxiliary modes in mm, inch and percent.
Load Frame
Rigid frame, using precision ground steel guide rods and rigid extruded support column. Frame stiffness up to 2000kN/mm plus K factor facility built-in. Re-circulating ball screw with bellows. Electronic limit trips, total travel trips and customer programmable safety stops.
Electronics System
Modular electronics system offers fast data transfer to the PC (up to 1000Hz) via high-speed Ethernet connection. Extensive input options allow the connection of a wide range of extensometers and accessories via simple plug-in interface modules.
Safety Features
Extensive safety features to ensure highest levels of operator safety, including E-Stop, programmable extension limits and overload/impact detection. Fully compliant with global safety directives:- 2006/42/EU Machinery Directive, 2014/35/EU Low Voltage Directive and 2014/30/EU Electromagnetic Compatibility Directive.
Optional Touchscreen Panel PC
When paired with the optional IPC3 industrial-grade Panel PC with touchscreen control, the machine becomes a robust standalone system without the need for an external PC or Laptop.
Using the latest Windows 10 operating system and running a full version of Testometric’s winTest software the system allows complete control of the test machine and provides storage and access to unlimited test methods and results.
The included mounting arm which attaches to the machine column T-Slots is fully adjustable for height, reach and viewing angle allowing the user to find the most ergonomic working position.
Software
Comprehensive winTest™ Analysis universal windows software covering tensile, compression, peel, shear, tear, cyclic, creep and multi stage testing. It includes a wide range of industry standard test methods and facility to create and store an unlimited number of further test methods. There is automated storage of all test data and ease of export to other software packages such as word, excel, access and SPC systems for enhanced report generation.
